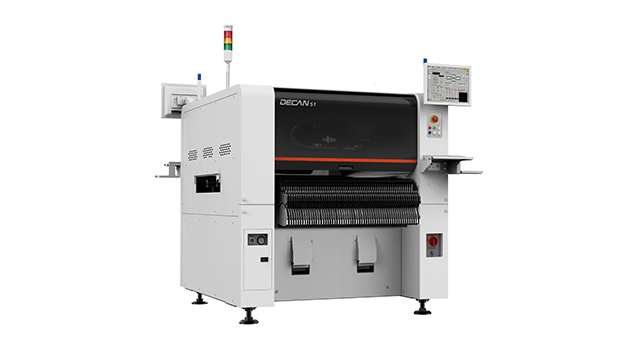

产品简介
中速机中的新强者！ 显著提升贴片机三大指标，提供多品种生产时所需要的较优产能。
· 提高实际产能
· 提升贴装品质
· 减少抛料率
· 提升贴装品质
· 减少抛料率
Specifications
| Alignment | Fly Camera + Fix Camera | ||
|---|---|---|---|
| The Number of Spindles | 10 spindles x 1 Gantry | ||
| Placement Speed (Optimum) | 47,000 CPH (Optimum) | ||
| Placement Accuracy | Chip | ±28μm @ Cpk≥ 1.0 | |
| IC | ±35μm @ Cpk≥ 1.0 | ||
| Component Range | Fly Camera | 03015 ~ □16mm | |
| Fix Camera | ~ □42mm (Standard) □42mm ~ □55mm (MFOV) L55mm ~ L75mm Connector (MFOV) |
||
| Max. Height | 10mm (Fly), 15mm (Fix) | ||
| PCB Size (mm) | Min. | 50(L) x 40(W) | |
| Max. | Standard | 510(L) x 510(W) | |
| Option | ~ Max. 1,500(L) x 460(W) | ||
| PCB Thickness (mm) | 0.38 ~ 4.2 | ||
| Feeder Capacity (8 mm 基准) | Standard | 60ea / 56ea (Fixed feederbase / Docking Cart) | |
| Option | 120ea / 112ea (Fixed feederbase / Docking Cart) | ||
| Utility | power | 3Phase AC200 / 208 / 220 / 240 / 380 / 415V Max. 3.5kVA |
|
| Air Consumption | 5.0~7.0kgf/cm2 50Nℓ/min (真空泵) |
||
| Weight (kg) | Approx. 1,600 | ||
| External Dimension (mm) | 1,430(L) x 1,740(D) x 1,485(H) |
