Hanwha Precision Machinery

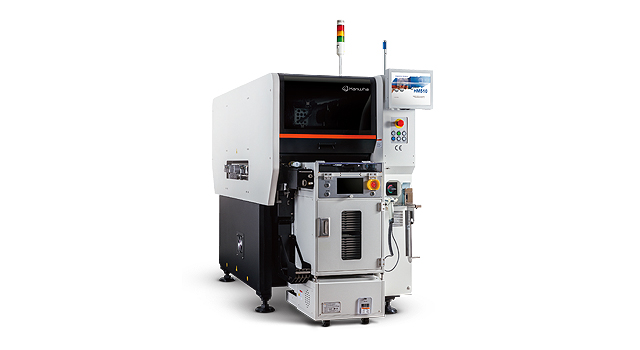

HM510

Odd-Shape Modular Mounter

Inquiry

Provides optimum solution and convenience for placing various odd-shape components and Shield Cans etc.

· Actual productivity is highest among machines of the same class
· Optimized to high quality production
· Unmanned, non-stop and zero defect using the Smart Factory S/W Solution

Specifications

Features

For product catalog, please request it through the customer inquiry
menu and we will send it to you by e-mail.

Inquiry

Product Video

Alignment			Fix Camera
The Number of Spindles			3 Spindles x 1 Gantry
Placement Speed (Optimum)			11,000 CPH
Placement Accuracy	Chip		±40 μm @ Cpk ≥ 1.0
Lead/BGA		±30 μm @ Cpk ≥ 1.0
Component Range	Size		0402 ~ □ 55 mm, ~ L74 mm x W55 mm
Max. Height		15 mm
PCB Size (mm)	Min.		L50 x W50
Max.	Single Lane	* ~ L510 x W580 ~ L750 x W580 (Option)
Dual Lane	* ~ L510 x W310 ~ L750 x W310 (Option)
PCB Thickness (mm)			0.3 ~ 4.2
Feeder Capacity (8 mm Standard)			80 ea (Docking Cart) / 40 ea (Docking Cart) + Tray (7ea include)
Utility	power		3 Phase, AC 200V / 208V / 220V / 240V / 380V / 415V ±10% Max. 3.0 kVA
Air Consumption		0.5 ~ 0.7 Mpa 100 Nℓ/min
Weight (kg)			Approx. 1,605
External Dimension (mm)			L890 x D2,370 x H1,930 (Standard)

Alignment

Fix Camera

The Number of Spindles

3 Spindles x 1 Gantry

Placement Speed
(Optimum)

11,000 CPH

Placement
Accuracy

Chip

±40 μm @ Cpk ≥ 1.0

Lead/BGA

±30 μm @ Cpk ≥ 1.0

Component
Range

Size

0402 ~ □ 55 mm, ~ L74 mm x W55 mm

Max. Height

15 mm

PCB Size (mm)

Min.

L50 x W50

Max.

Single Lane

* ~ L510 x W580
~ L750 x W580 (Option)

Dual Lane

* ~ L510 x W310
~ L750 x W310 (Option)

PCB Thickness (mm)

0.3 ~ 4.2

Feeder Capacity
(8 mm Standard)

80 ea (Docking Cart) / 40 ea (Docking Cart) + Tray (7ea include)

Utility

power

3 Phase, AC 200V / 208V / 220V / 240V / 380V / 415V ±10%
Max. 3.0 kVA

Air
Consumption

0.5 ~ 0.7 Mpa
100 Nℓ/min

Weight (kg)

Approx. 1,605

External Dimension (mm)

L890 x D2,370 x H1,930 (Standard)
