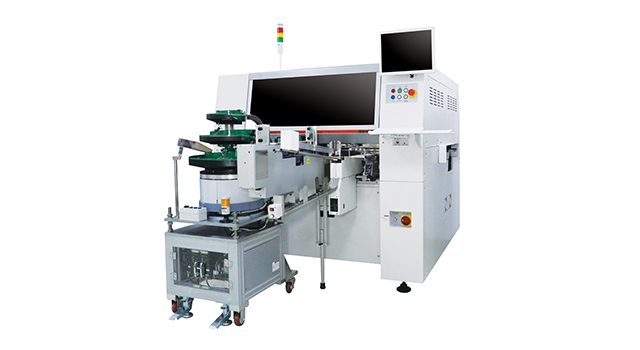

Multi-functional hybrid mounter that can place various insert components and odd-shape components quickly and reliably.
· Secures quality reliability through automation of manual processes
· Supports special nozzles and heads applicable to odd-shape components
· Supports various component supply devices
· Supports special nozzles and heads applicable to odd-shape components
· Supports various component supply devices
Specifications
| Alignment | Fly Camera | |
|---|---|---|
| The Number of Spindles | 4 spindles x 1 Gantry | |
| Placement Speed (Optimum) | 12,000 CPH (Optimum) | |
| Placement Accuracy | Chip | ±50 μm @ Cpk≥ 1.0 |
| IC | ±30 μm @ Cpk≥ 1.0 | |
| Component Range | Small Fix Camera | 0603 ~ □22 mm |
| Wide Fix Camera | ~ □55 mm, L150 mm | |
| Max. Height | 32 mm (Standard), 42 mm (Special Order *) | |
| PCB Size (mm) | Min. | L50 x W40 |
| Max. | ~ L460 x W400 (Standard) ~ L460 x W280 (Option), ~ L460 x W340 (Option), ~ L610 x W460 (Option) |
|
| PCB Thickness (mm) | 0.38 ~ 4.2 | |
| Feeder Capacity (8 mm Standard) | 120 ea/112 ea (Docking Cart) | |
| Utility | power | 3 phase AC 200±18V / 208±19V / 220±20V / 240±22V / 380±25V / 415±28V (50/60Hz) Max. 3.5 kVA |
| Air | 5.0 ~ 7.0 kgf/cm2 50 Nℓ/min (Vacuum Pump) |
|
| Weight (kg) | Approx. 1,600 kg | |
| External Dimension (mm) | L1,650 x D1,679 x H1,993 |
