XE20/26

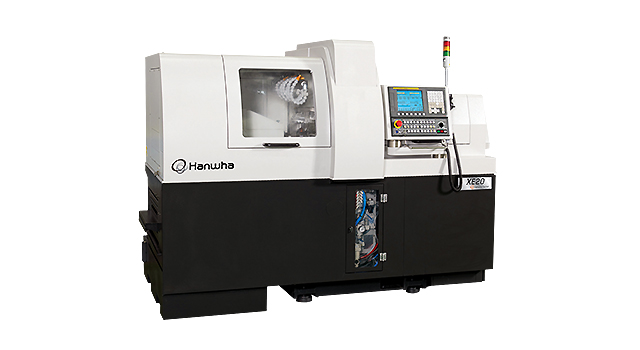

CNC Swiss Turning Lathe

Inquiry

Optimized for high precision and high efficiency

· High-performance motor applied for cross drilling
· Optimal mold casting and rib structure through finite element analysis
· Optimal space utilization and higher chip disposal efficiency


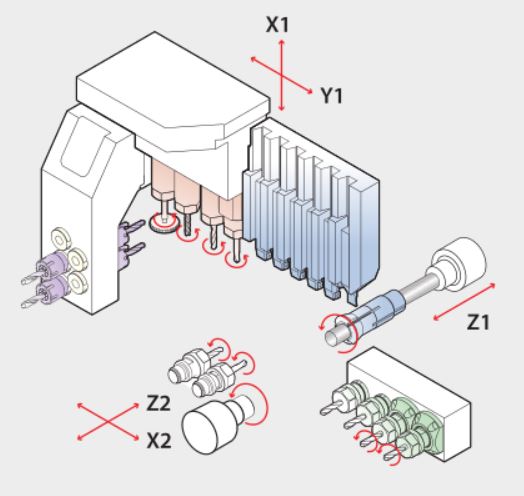

Specifications

Specifications

    XE20/26
H N NH J Ne
NC   Hanwha Fanuc-i
Max. machining diameter (mm) Ø20/26
Z1 Stroke (mm) 210 60 160 (H), 50 (N) 210 60
Main spindle Speed (rpm) 10,000 (Ø20), 8,000 (Ø26)
Motor (kW) 2.2/3.7 (Ø20), 2.2/5.5 (Ø26)
OD tool No. of tools 6 (□12mm) (Ø20), 5 (□16mm) (Ø26)
Front tool No. of tools 5 (ER16M, Ø25)
Cross drill No. of tools 4 (ER16)
Speed (rpm) 6,000
Motor (kW) 1.0
Off-center drill
(Option)
No. of tools 2 (ER16)
Sub spindle Speed (rpm) 8,000
Motor (kW) 1.5/2.2
Back tool No. of tools 4 (ER16) (2 Fixed + 2 Driven) 4 (ER16) (4 Fixed)
Speed (rpm) 6,000 -
Motor (kW) 1.0 -
Machine size (L x W x H) (mm) 2,260 x 1,240 x 1,670
Weight (kg) 2,500
Power consumption (Cable size) 15kVA, 10kW (VCTF 10SQ x 4C)
Air flow rate (Liter/Min) 120 ~ 150
* H : G/B & Driven back tool(2), J : G/B & Fixed back tool
* N : Non-G/B & Driven back tool(2), Ne : Non-G/B & Fixed back tool, NH : Convertible G/B & Driven back tool(2)
