Product
Economical mo optimized for multi-tasking machining

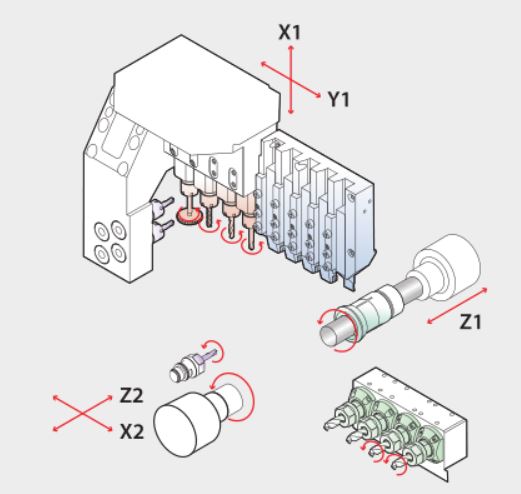

· Improved machining with more distance between tools
· Best-in-class strong cutting
· Highly adap to back rotary tools and special tools
· Best-in-class strong cutting
· Highly adap to back rotary tools and special tools
Specifications

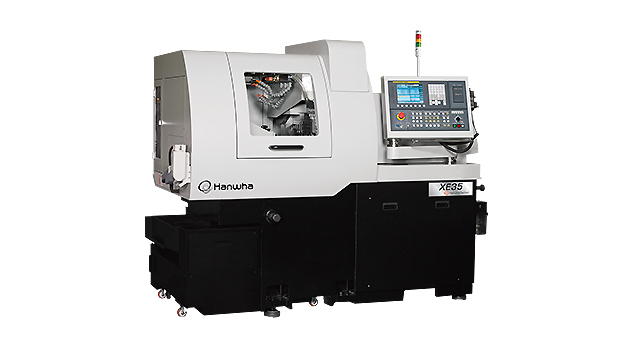

| XE35 | |||||
|---|---|---|---|---|---|
| H | N | J | Ne | ||
| NC | Hanwha Fanuc-i | ||||
| Max. machining diameter (mm) | Ø35 | ||||
| Z1 Stroke (mm) | 210 | 60 | 210 | 60 | |
| Main spindle | Speed (rpm) | 6,500 | |||
| Motor (kW) | 2.2/5.5 | ||||
| OD tool | No. of tools | 5 (□16mm) | |||
| Front tool | No. of tools | 4 (ER16M, Ø25) | |||
| Cross drill | No. of tools | 4 (ER16M) | |||
| Speed (rpm) | 6,000 | ||||
| Motor (kW) | 1.0 | ||||
| Off-center drill (Option) |
No. of tools | 1 (ER16) | |||
| Sub spindle | Speed (rpm) | 6,500 | |||
| Motor (kW) | 1.5/2.2 | ||||
| Back tool | No. of tools | 4 (ER16) (2 Fixed + 2 Driven) | 4 (ER16) (4 Fixed) | ||
| Speed (rpm) | 6,000 | - | |||
| Motor (kW) | 1.0 | - | |||
| Machine size (L x W x H) (mm) | 2,050 x 1,490 x 1,760 | ||||
| Weight (kg) | 2,750 | ||||
| Power consumption (Cable size) | 15kVA, 10kW (VCTF 10SQ x 4C) | ||||
| Air flow rate (Liter/Min) | 120 ~ 150 | ||||
* N : Non-G/B & Driven back tool(2), Ne : Non-G/B & Fixed back tool
