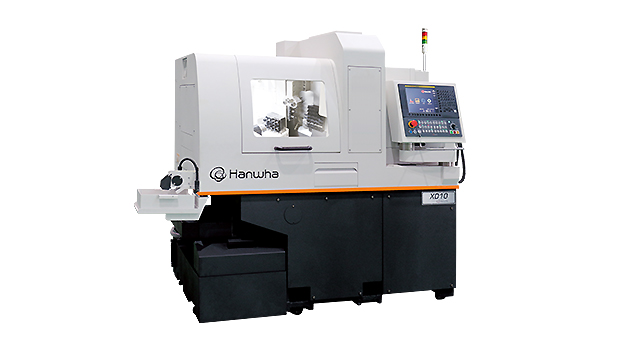

High productivity & precision 5/6-axis solution for max. dia. Ø10mm
· Optimizing for reducing cycle
· Structure for minimizing thermal expansion & vibration
· Structure for minimizing thermal expansion & vibration
Specifications
| XD10 | ||
|---|---|---|
| NC | Hanwha Fanuc-i | |
| Max. machining diameter (mm) | Ø10 | |
| Z1 Stroke (mm) | 155 | |
| Main spindle | Speed (rpm) | 15,000 |
| Motor (kW) | 2.2/3.7 | |
| Turning tool | No. of tools | □8 x 6 |
| Front tool | No. of tools | ER11 x 4 |
| Cross drill | No. of tools | ER11M x 4 (Option: ER11M x 5) |
| Speed (rpm) | 10,000 | |
| Motor (kW) | 0.55 | |
| Sub spindle | Speed (rpm) | 10,000 |
| Motor (kW) | 0.55/1.1 | |
| Back tool | No. of tools | ER11 x 8 (Y2: Fixed 4 + Driven 4) (Option: Fixed 2 + Driven 2) |
| Speed (rpm) | 9,000 | |
| Motor (kW) | 0.55 | |
| Machine size (L x W x H) (mm) | 1,810 x 1,150 x 1,770 | |
| Weight (kg) | 2,200 | |
| Power consumption (Cable size) | 15kVA, 10kW (VCTF 10SQ x 4C) | |
| Air flow rate (Liter/Min) | 120 ~ 150 | |
