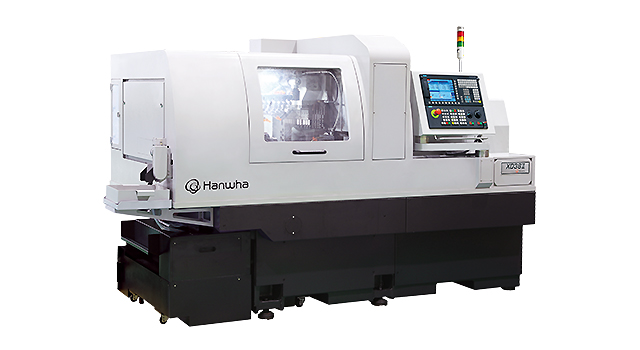

The swiss turning machine optimized for heavy duty cutting and highly complex machining
· Stretched stroke to cover various & flexible processing
· Optimized structure & spec for Ø38mm
· Optimized structure & spec for Ø38mm
Specifications
| XD38II-R | ||
|---|---|---|
| NH | ||
| NC | Fanuc 32i-B / Siemens 828D | |
| Max. machining diameter (mm) | Ø38 (Option : Ø40) | |

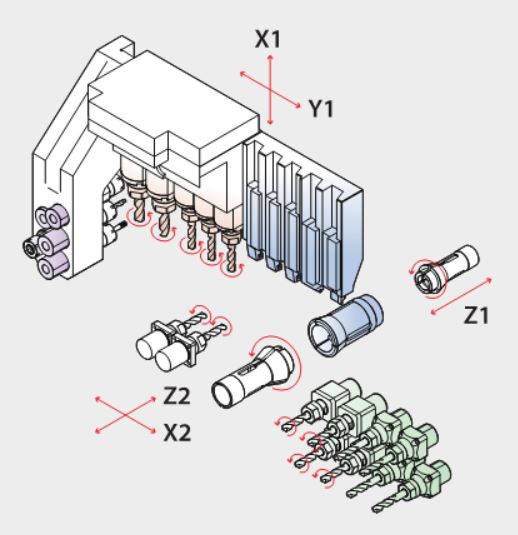

| Z1 Stroke (mm) | 320 (H), 120 (N) | |
| Main spindle | Speed (rpm) | 6,500 |
| Motor (kW) | 5.5/7.5 (Fanuc), 23 (Siemens) | |
| OD tool | No. of tools | 5 (□20mm x 2, □16mm x 3) |
| Front tool | No. of tools | 5 (ER20M, Ø32) |
| Cross drill | No. of tools | 5 (ER20 x 2, ER16 x 3) |
| Speed (rpm) | 6,000 | |
| Motor (kW) | 2.2 (Fanuc), 2.13 (Siemens) | |
| Off-center drill drill(Option) |
No. of tools | 2 (ER16) Modular |
| Sub spindle | Speed (rpm) | 6,500 |
| Motor (kW) | 2.2/5.5 (Fanuc), 23 (Siemens) | |
| Back tool | No. of tools | 8 (ER16) (4 Fixed + 4 Driven) |
| Speed (rpm) | 6,000 | |
| Motor (kW) | 1.0 (Fanuc), 1.02 (Siemens) | |
| Machine size (L x W x H) (mm) | 2,650 x 1,600 x 1,790 | |
| Weight (kg) | 4,600 | |
| Power consumption (Cable size) | 25kVA (Siemens : 40kVA), 16.7kW (VCTF 16SQ x 4C) |
|
| Air flow rate (Liter/Min) | 120 ~ 150 | |
