한화정밀기계

SM485

Wide Ranged Component Placer

문의하기

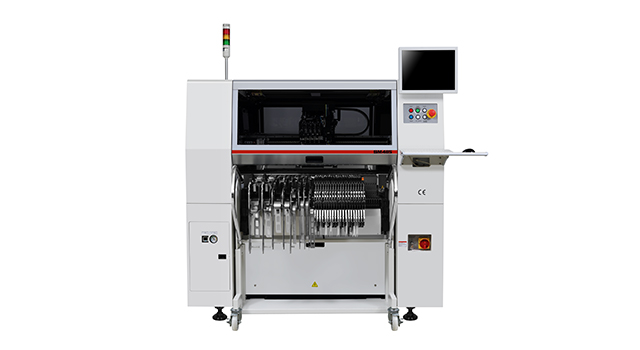

SM485는 하나의 장비로 칩부터 이형부품까지 고품질 실장과 관리가 가능한 All-in-One Solution을 제공합니다.

· 범용기 고속성 + 이형기 부품대응력
· 다양한 부품 공급장치 대응 가능
· 삽입부품 실장을 위한 최적 솔루션 제공

제품사양

특장점

제품 영상

관련부품

scroll

SME Feeder
Stick Feeder & Etc.
Multi Tray Feeders

			SM471PLUS	SM481PLUS	SM482PLUS	SM485
Alignment			Fly Camera	Fly Camera + Fix Camera (Option)	Fly Camera + Fix Camera	Fly Camera + Fix Camera
The Number of Spindles			10 Spindes x 2 Gantry	10 Spindle x 1 Gantry	6 Spindle x 1 Gantry	4+1 Spindes x 1 Gantry
Placement Speed			78,000CPH (Optimum)	40,000 CPH (Optimum)	30,000 CPH (Optimum)	22,000 CPH (Optimum)
Placement Accuracy	Chip		±40μm@±3σ
QFP		±50μm@±3σ	±30μm@±3σ
Component Range	*Fly Camera	Chip IC, Connector BGA, CSP	0402 ~ □14mm	0402 ~ □16mm	0603 ~ □22mm (*** 0402 ~ □14mm)	0402 ~ □21 mm
*Fix Camera	C, Connector BGA, CSP	-	□16mm ~□42mm (Standard) □42mm ~□55mm (MFOV) L55mm ~ L75mm Connector (MFOV)	□16mm ~□42mm (Standard) □42mm ~□55mm (MFOV) L75mm ~ L150mm Connector (MFOV)
Max. Height		12 mm	10 mm (Fly) 15 mm (Fix)	12 mm (Fly) 25 mm (Fix)	15 mm (Fly) 26 mm (Fix)
PCB Size (mm)	Min.		L50 x W40
Max.	Single Lane	~ L510 x W460 ~ L610 x W460 (Option)	~ L460 x W400 ~ L510 x W460 (Option) ~ L610 x W510 (Option) ~ Max. L1,500 x W460 (Option)	~ L460 x W400 ~ L510 x W460 (Option) ~ L610 x W510 (Option) ~ Max. L1,200 x W510 (Option)	~ L460 x W400 ~ Max. L740 x W460 (Option)
Dual Lane	~ L460 x W250 ~ L610 x W250 (Option)	-	-	-
PCB Thickness		0.38 ~ 4.2
Feeder Capacity(8mm기준)			120ea/112ea (Docking Cart)
Utility	power		AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)
Max. 5.0kVA	Max. 3.5kVA	Max. 3.5kVA	Max. 3.5kVA
Air Consumption		0.5 ~ 0.7MPa (5.0 ~ 7.0kgf/cm2)
350Nℓ/min 50Nℓ/min (진공펌프)	160Nℓ/min 50Nℓ/min (진공펌프)	180Nℓ/min 50Nℓ/min (진공펌프)	180Nℓ/min 50Nℓ/min (진공펌프)
Mass (kg)			Approx. 1,730	Approx. 1,655	Approx. 1,575	Approx. 1,600
External Dimension (mm)			L1,650 x D1,690 x H1,485	L1,650 x D1,680 x H1,530	L1,650 x D1,680 x H1,530	L1,650 x D1,680 x H1,530

SM471PLUS

SM481PLUS

SM482PLUS

SM485

Alignment

Fly Camera

Fly Camera
+ Fix Camera (Option)

Fly Camera
+ Fix Camera

The Number of Spindles

10 Spindes x 2 Gantry

10 Spindle x 1 Gantry

6 Spindle x 1 Gantry

4+1 Spindes x 1 Gantry

Placement Speed

78,000CPH (Optimum)

40,000 CPH (Optimum)

30,000 CPH (Optimum)

22,000 CPH (Optimum)

Placement
Accuracy

Chip

±40μm@±3σ

QFP

±50μm@±3σ

±30μm@±3σ

Component
Range

*Fly Camera

Chip
IC, Connector
BGA, CSP

0402 ~ □14mm

0402 ~ □16mm

0603 ~ □22mm
(*** 0402 ~ □14mm)

0402 ~ □21 mm

*Fix Camera

C, Connector
BGA, CSP

□16mm ~□42mm (Standard)
□42mm ~□55mm (MFOV)
L55mm ~ L75mm Connector (MFOV)

□16mm ~□42mm (Standard)
□42mm ~□55mm (MFOV)
L75mm ~ L150mm
Connector (MFOV)

Max. Height

12 mm

10 mm (Fly)
15 mm (Fix)

12 mm (Fly)
25 mm (Fix)

15 mm (Fly)
26 mm (Fix)

PCB Size (mm)

Min.

L50 x W40

Max.

Single Lane

~ L510 x W460
~ L610 x W460 (Option)

~ L460 x W400
~ L510 x W460 (Option)
~ L610 x W510 (Option)
~ Max. L1,500 x W460 (Option)

~ L460 x W400
~ L510 x W460 (Option)
~ L610 x W510 (Option)
~ Max. L1,200 x W510 (Option)

~ L460 x W400
~ Max. L740 x W460 (Option)

Dual Lane

~ L460 x W250
~ L610 x W250 (Option)

PCB Thickness

0.38 ~ 4.2

Feeder Capacity(8mm기준)

120ea/112ea (Docking Cart)

Utility

power

AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)

Max. 5.0kVA

Max. 3.5kVA

Air Consumption

0.5 ~ 0.7MPa (5.0 ~ 7.0kgf/cm2)

350Nℓ/min
50Nℓ/min (진공펌프)

160Nℓ/min
50Nℓ/min (진공펌프)

180Nℓ/min
50Nℓ/min (진공펌프)

Mass (kg)

Approx. 1,730

Approx. 1,655

Approx. 1,575

Approx. 1,600

External Dimension (mm)

L1,650 x D1,690 x H1,485
