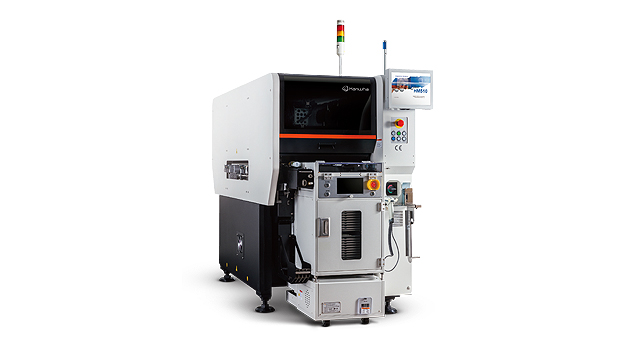

| Alignment | Fix Camera | ||
|---|---|---|---|
| The Number of Spindles | 3 Spindles x 1 Gantry | ||
| Placement Speed (Optimum) | 11,000 CPH | ||
| Placement Accuracy | Chip | ±40 μm @ Cpk ≥ 1.0 | |
| Lead/BGA | ±30 μm @ Cpk ≥ 1.0 | ||
| Component Range | Size | 0402 ~ □ 55 mm, ~ L74 mm x W55 mm | |
| Max. Height | 15 mm | ||
| PCB Size (mm) | Min. | L50 x W50 | |
| Max. | Single Lane | * ~ L510 x W580 ~ L750 x W580 (Option) |
|
| Dual Lane | * ~ L510 x W310 ~ L750 x W310 (Option) |
||
| PCB Thickness (mm) | 0.3 ~ 4.2 | ||
| Feeder Capacity (8 mm 기준) | 80 ea (Docking Cart) / 40 ea (Docking Cart) + Tray (7ea 포함) | ||
| Utility | power | 3 Phase, AC 200V / 208V / 220V / 240V / 380V / 415V ±10% Max. 3.0 kVA |
|
| Air Consumption | 0.5 ~ 0.7 Mpa 100 Nℓ/min |
||
| Weight (kg) | Approx. 1,605 | ||
| External Dimension (mm) | L890 x D2,370 x H1,930 (Standard) |
