Product

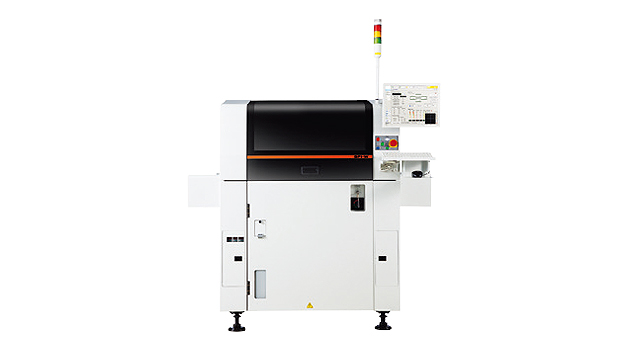

Provides the highest productivity as well as 6 SIGMA level high quality printing.
· 6 sigma level of high quality printing
· Corrects print offset automatically by feeding back defective SPI printing
· Support for Mixed Production
· Corrects print offset automatically by feeding back defective SPI printing
· Support for Mixed Production
Specifications
| SP1-C | SP2-C | SP1-W | ||
|---|---|---|---|---|
| Alignment Repeatability | ±12.5um @μ+6σ | ±12.5um @μ+6σ | ±12.5um @μ+6σ | |
| Wet Print | ±25um @μ+6σ | ±25um @μ+6σ | ±25um @μ+6σ | |
| Cycle Time | 5sec (Excl. Printing Time) | 5sec (Excl. Printing Time) | 7sec (Excl. Printing Time) | |
| Board Handling | ||||
| Max.Size (mm) | L330 × W250 (Single Lane) L330 × W250 (Dual Lane/Option) | L350 × W250 (Single Lane) L350 × W250 (Dual Lane/Option) | L510 × W460 (Single Lane) L330 × W310 (Dual Lane/Option) |
|
| Min.Size (mm) | L50 × W50 | L50 × W50 | L50 × W50 | |
| Thickness (mm) | 0.4 ~ 4.0 | 0.4 ~ 4.0 | 0.4 ~ 5.0 | |
| Max.Weight (kg) | 1.5 | 1.5 | 3.0 | |
| Stencil | ||||
| Min.Size (mm) | L550 × W650 | L550 × W650 L650 × W550 | L550 × W650 L650 × W550 |
|
| Max.Size (mm) | L650 × W550 | L736 × W736 | L736 × W736 | |
| Frame Thickness (mm) | 30 ~ 40 | 30 ~ 40 | 30 ~ 40 | |
| Matching | Center Standard | Center Standard | Center Standard | |
| Vision | ||||
| Function | Fiducial Recognition, Inspection | Fiducial Recognition, Inspection | Fiducial Recognition, Inspection | |
| FOV (mm) | 10.6 × 8.0 | 10.45mm ± 2% | 10.6 × 8.0 | |
| Fiducial Types | ●, ▲, ■, ◆, ＋ | ●, ▲, ■, ◆, ＋ | ●, ▲, ■, ◆, ＋ | |
| Fiducial Size (mm) | 0.5 ~ 4.0 | 0.5 ~ 4.0 | 0.5 ~ 4.0 | |
| Operator Interface | ||||
| Hard Ware | LCD Monitor, Mouse & Keyboard | LCD Monitor, Mouse & Keyboard | LCD Monitor, Mouse & Keyboard |
|
| Software Operating System | Window XP Embedded | Window 7 Embedded | Window XP Embedded | |
| Utility | ||||
| Power Supply | 100/110/120/200/220/240V (±5%)Single Phase | 100/110/120/200/220/240V (±5%)Single Phase | 100/110/120/200/220/240V (±5%)Single Phase |
|
| Max.4.5kVA, 50/60Hz | Max.4.5kVA, 50/60Hz | Max.4.5kVA, 50/60Hz | ||
| Power Supply | Pressure 4.5~7.0kgf/cm2 | Pressure 4.5~7.0kgf/cm2 | Pressure 4.5~7.0kgf/cm2 | |
| Max. 700Nℓ/min | Max. 700Nℓ/min | Max. 600~700Nℓ/min | ||
| Mass | Approx. 1,250kg | Approx. 1,150kg | Approx. 1,620kg | |
| External Dimension (mm) | L1,326 × D1,200 × H1,904 | L1,376 × D1,200 × H1,904 | L1,540 × D1,650 × H1,921 | |
| Option List | ||||
| SPI | Auto Cleaning | Standard | Standard | Standard |
| Auto Printing Offset Control | Standard | Standard | Option | |
| Dual Lane Conveyor (Bypass) | × | × | Option | |
| Dual Lane Conveyor (Conveyor In Common Use at the Front and Rear) | Option | Option | × | |
| Air Conditioner (External) | Option | Option | Option | |
| Fan Blower (Internal) | Option | Option | Option | |
| ASS (Auto Solder Supply) | Option | Option | Option | |
| Stage Auto Leveling | Standard | Option | Standard | |
| PCB Temperature Sensor | Option | Option | Option | |
| Gerber Pad | Option | Option | Option | |
| Default PCB Program | Standard | Standard | Standard | |
| 2D Barcode Tracability | Option | Option | Option |
