Hanwha Precision Machinery

• Increase convenience by adding fiducial camera
• Remove dead zones that cannot be reached by Fid. camera

• Intensify responsiveness to microparts caused by camera change

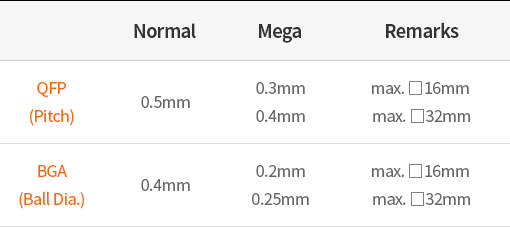

• Stage camera change (Normal → Mega)
• Fine pitch response for hetero parts/li>

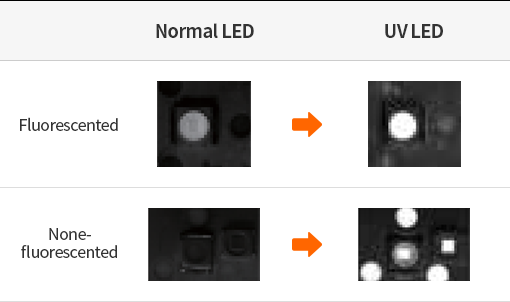

• Fluorescence/non-fluorescence LED component recognition ratio enhancement
• Easy process management for parts that were not recognized under the previous (normal, blue) lighting system

• Intensify security with Windows 10 OS upgrade
• Prevent viruses with Secure USB security solution

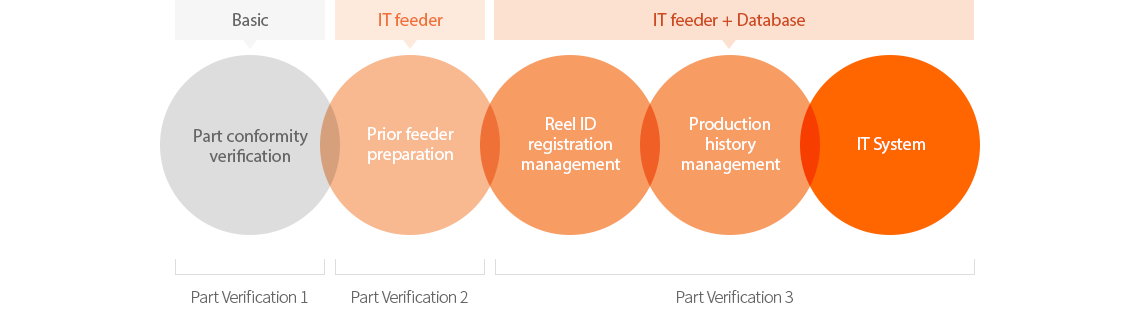

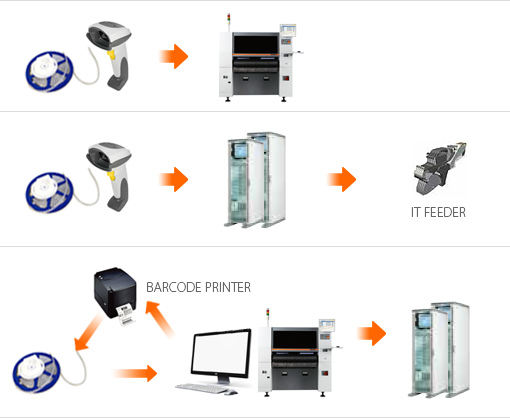

Part conformity verification

• Scan barcode attached to material reel
• Verify conformity by comparing with material number in the program

Prior feeder preparation

• Save reel data for each feeder before model replacement
• Verify conformity in advance and reduce model replacement time

Reel registration & production history management

• Assign a unique barcode to each reel for individual management
• Save the history in DB whenever PCB production is completed

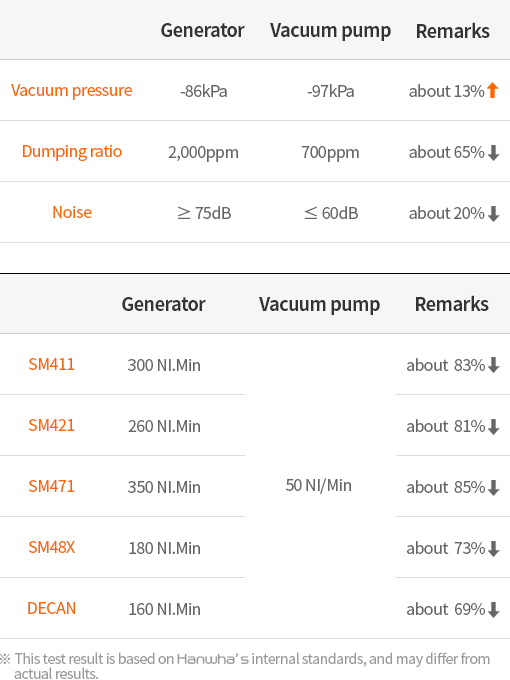

Quality & productivity enhancement through improvement in vacuum pressure

• Part absorption quality enhancement through improvement in vacuum pressure & stable flow
• Dumping ratio reduction & productivity enhancement based on absorption safety
• Noise reduction by applying soundproof cover

Minimize the influence of SMT quality on the main compressor

• Minimize the use of weather sensitive main air
• Reduce management points, such as air pipes and dryers
• Prevent facility failure caused by oil backflow
• Easy to maintain & manage vacuum pumps

Pneumatic consumption reduction

• Pneumatic consumption reduced to about 22% compared to generators
• Reduce the burden of using pneumatics in new investment & layout change

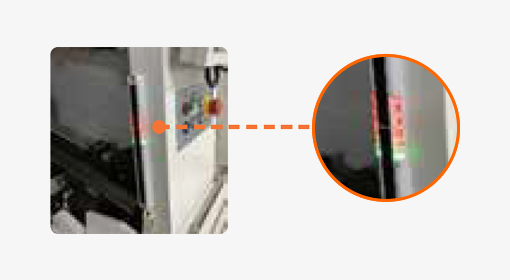

Add operator detection sensor for job safety enhancement

• Defect operators during open-door processing and stop the facility operation

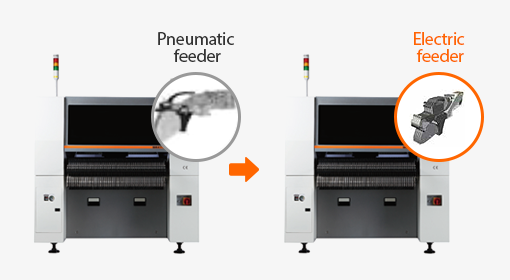

Remodeling a pneumatic feeder only facility to an electric feeder compatible facility

• Enhanced productivity through the use of electric feeders
• Compatible with SM471/48x/DECAN series

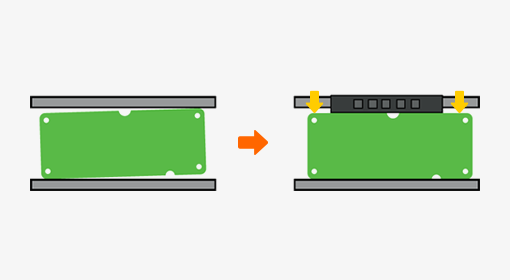

Enhancement of mounting accuracy and fiducial mark recognition ratio with PCB alignment effect

• Maximized effect in large scale PCB production

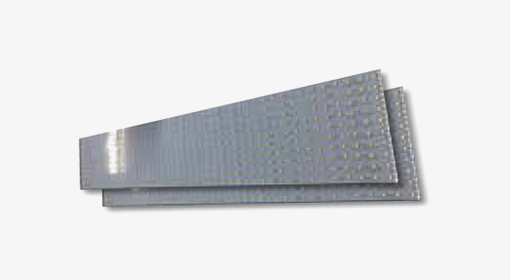

Long type to deal with LED types

• Flexible response possible in the event of a change in production type

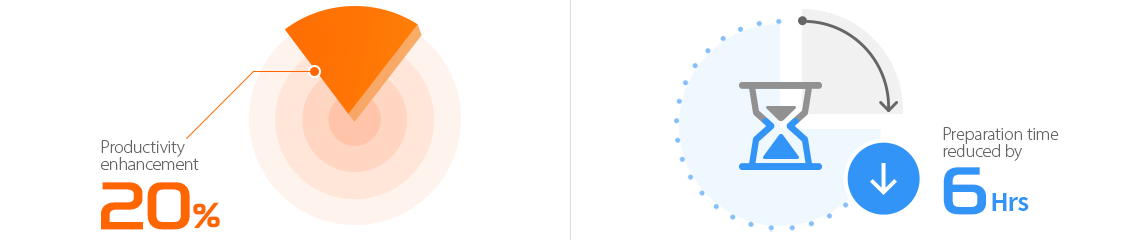

Productivity increase

• Actual productivity improvement through model change loss time saving
• Expanding the response of small quantity batch production through advance preparation

Process simplification

• 6 steps of internal work → 2 steps
• (Advance preparation for excessively time-consuming processes)

Effects

• Effects maximized at model change of 3 times per month

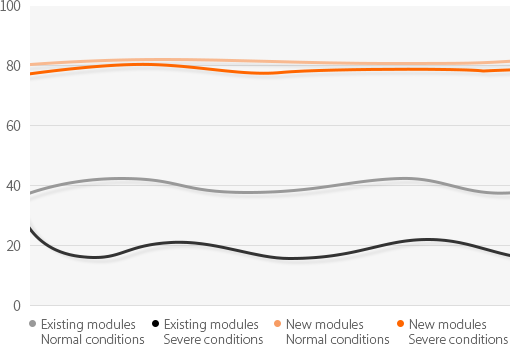

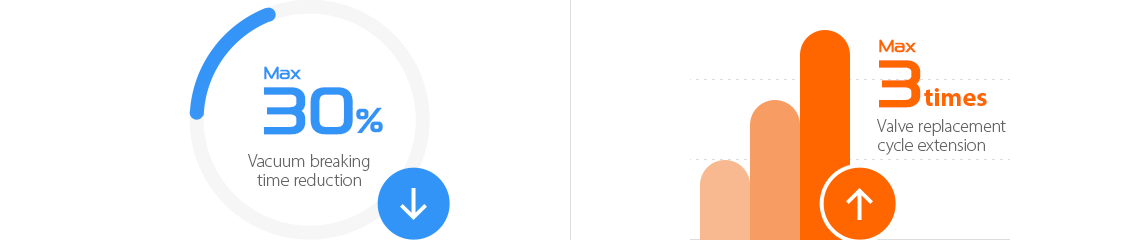

Pneumatic creation/destruction speed enhancement

• Vacuum breaking time reduction: 10% ~ 30% enhancement compared to existing module
• Productivity enhancement effect according to part parameter improvement

Saving solenoid valve replacement cost

• Highly reliable and extended replacement cycle more than 3 times as long as for existing modules
• Regular replacement is recommendable because prior detection of performance abnormality is difficult
