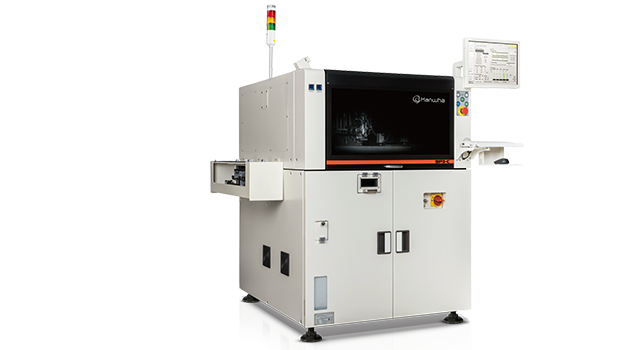

SP3-C helps customers experience the printer of the future smart era as well as the best printing quality
· Realizes high-precision printing with alignment accuracy of ±8um
· Corrects print offset automatically by feeding back defective SPI printing
· port for Mixed Production
· Corrects print offset automatically by feeding back defective SPI printing
· port for Mixed Production
Specifications
| SP3-C | ||
|---|---|---|
| Alignment Repeatability | ±8μm@6σ, Cpk2.0 | |
| Wet Print | ±15μm@6σ, Cpk2.0 | |
| Cycle Time | 5 sec | |
| PCB | Max. Size (mm) | L350 x W250 (Single Lane) |
| L350 x W250 (Dual Lane/Option) ** | ||
| Min. Size (mm) | L50 x W50 | |
| Thickness (mm) | 0.3 ~ 3.9 | |
| Max. Weight (kg) | 1.5 | |
| Metal Mask | Min. Size (mm) | L550 x W650 |
| Max. Size (mm) | L650 x W550, L736 x W736 | |
| Frame Thickness (mm) | 30 ~ 40 | |
| Matching | Center Standard | |
| Utility | Power Supply | 100/110/120/200/220/240V (±5 %) Single Phase |
| Max. 4.5 kVA, 50/60 Hz | ||
| Air Supply | Pressure 4.5 ~ 7.0 kgf/cm2, Max. 700 Nℓ/min | |
| External Dimension (Standard) |
W1,376 * x D1,200 x H1,430 mm | |
