Powerful 7-axis automatic lathe specialized in stability and taper surface roughness required in the dental market

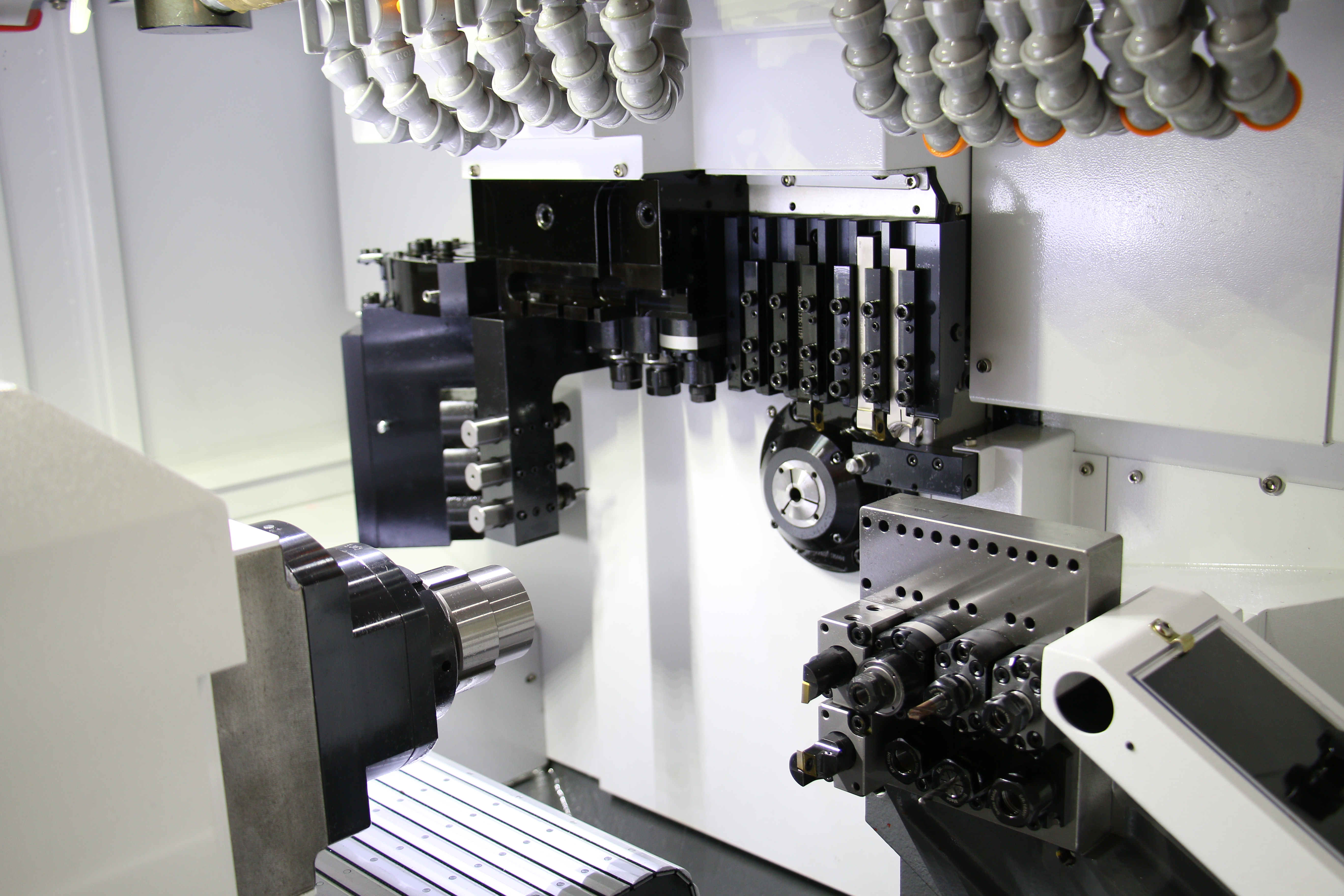

• High-rigidity, high-performance Back Y2 tool post (9,000rpm) for sub process
• Applied High-rigidity integrated B-axis tool post as standard

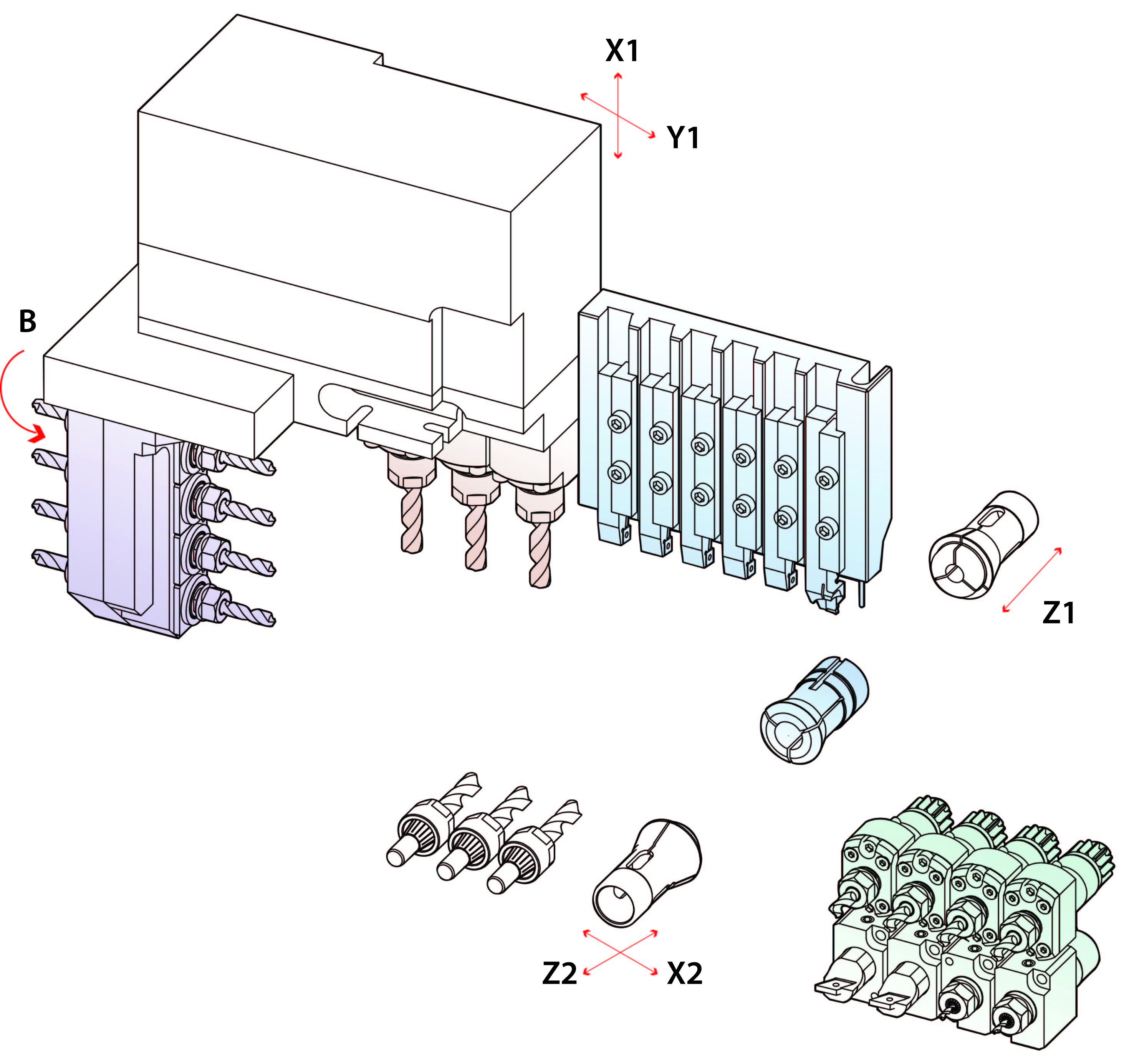

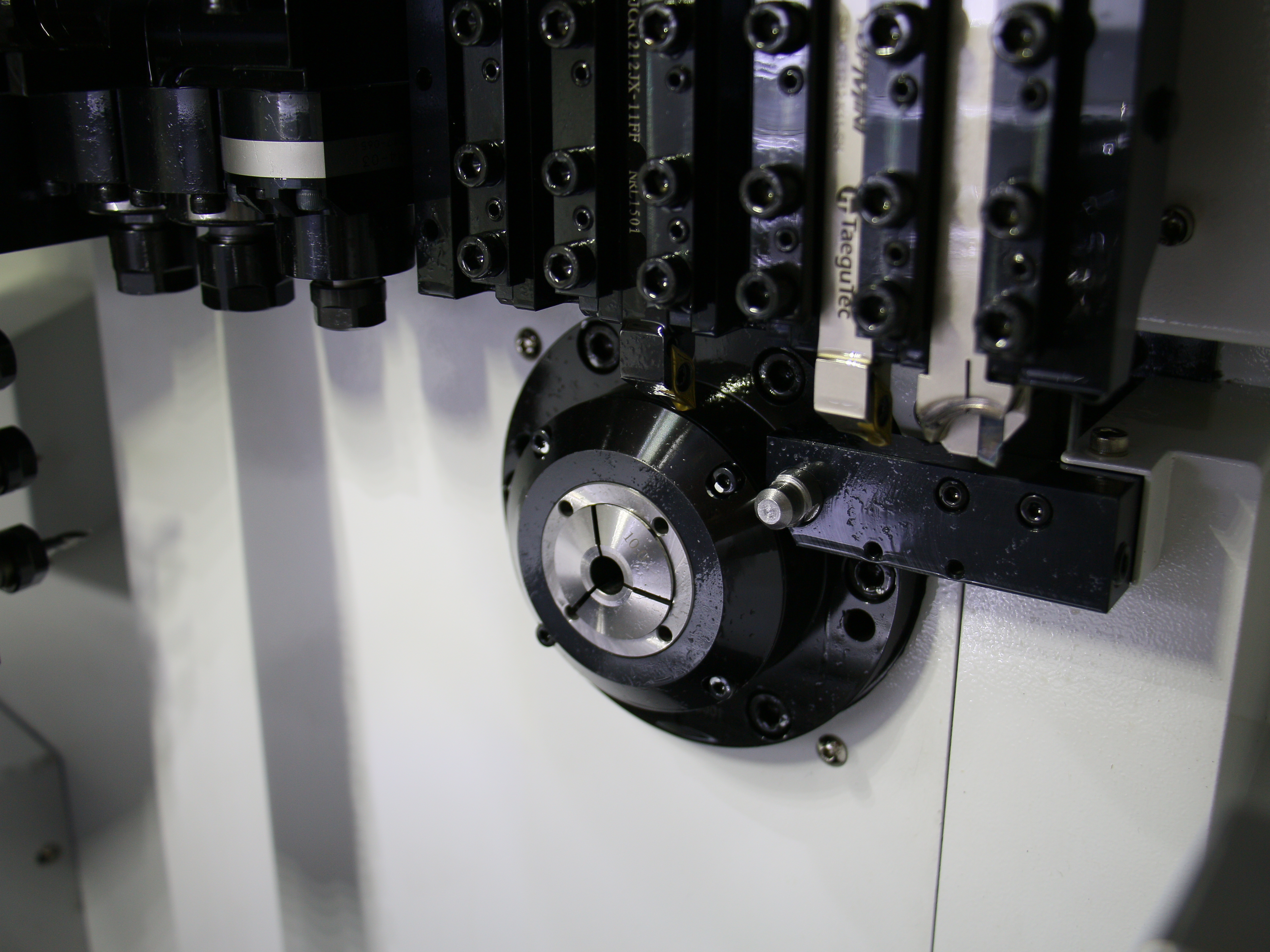

• Compatibility with various optional tools (4x modular, back cross, 3-axis live tool, etc.)

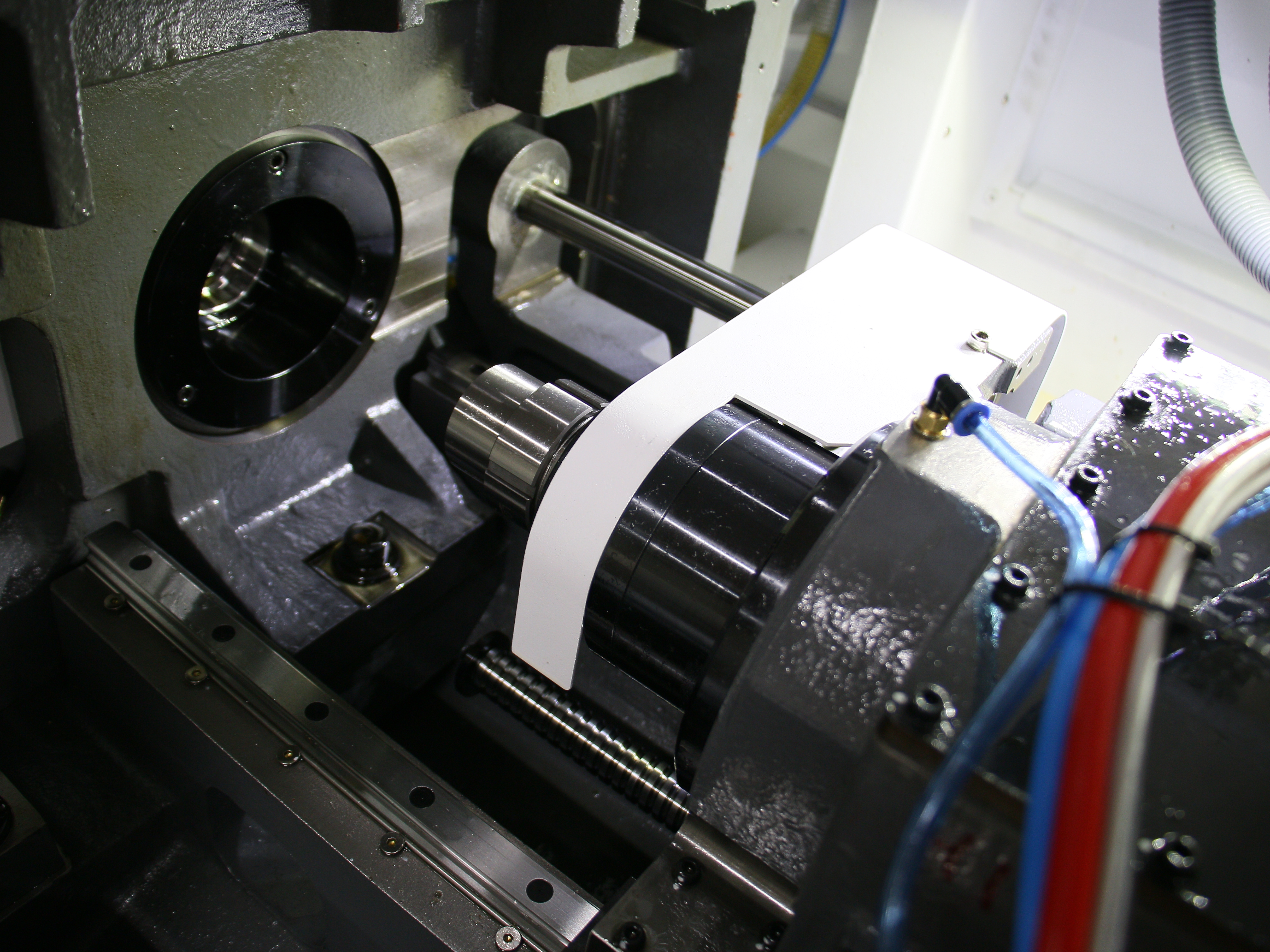

• Short working distance and improved convenience by optimizing the equipment structure
Specifications
|
|
|
XM20 |
XM20 Y2 |
XM20 Y2+B |
|
NC |
|
Fanuc 32i-B Plus |
Fanuc 32i-B Plus |
Fanuc 32i-B Plus |
|
Max. machining diameter (mm) |
Ø20 (Ø25 Op.) |
Ø20 (Ø25 Op.) |
Ø20 (Ø25 Op.) |
|
|
Z1 Stroke (mm) |
205 (H), 55 (N) |
205 (H), 55 (N) |
205 (H), 55 (N) |
|
|
Main spindle |
Speed (rpm) |
10,000 |
10,000 |
10,000 |
|
Motor (kW) |
2.2/3.7 |
2.2/3.7 |
2.2/3.7 |
|
|
OD tool |
No. of tools |
□12mm x 6 |
□12mm x 6 |
□12mm x 6 |
|
Front tool |
No. of tools |
ER16 x 3 (Fix) |
ER16 x 3 (Fix) |
ER16 x 3 (Fix) |
|
Cross drill |
Speed (rpm) |
6,000 |
6,000 |
6,000 |
|
Motor (kW) |
2.5 |
2.5 |
2.5 |
|
|
No. of tools |
ER16 x 7 (4 + 3) |
ER16 x 7 (4 + 3) |
ER16 x 3 |
|
|
B-axis |
No. of tools |
- |
- |
ER11 x 8 |
|
Speed (rpm) |
- |
- |
8,000 |
|
|
Sub spindle |
Speed (rpm) |
10,000 |
10,000 |
10,000 |
|
Motor (kW) |
2.2/3.7 |
2.2/3.7 |
2.2/3.7 |
|
|
Back tool Fix : ER16 Driven : ER11 |
Speed (rpm) |
9,000 |
9,000 |
9,000 |
|
Motor (kW) |
1.0 |
1.0 |
1.0 |
|
|
No. of tools |
4 (2 Fix + 2 Driven) |
8 (4 Fix + 4 Driven) |
8 (4 Fix + 4 Driven) |
|
|
Machine size (L x W x H) (mm) |
2,160 x 1,200 x 1,900 |
2,160 x 1,200 x 1,900 |
2,160 x 1,200 x 1,900 |
|
|
Weight (kg) |
2,900 |
2,950 |
3,000 |
|
|
Power consumption* |
3kVA (Rated : 7kVA) |
3kVA (Rated : 7kVA) |
3kVA (Rated : 7kVA) |
|
|
Cable size |
10SQ |
10SQ |
10SQ |
|
|
Air flow rate (Liter/Min) |
62 |
62 |
62 |
|
|
* Power consumption may vary upon machining condition or attached options. |
||||
